Distinguishing fractures and microfractures

3 Tesla MRI to distinguish fractures and microfractures

In the sports setting, especially in disciplines involving jumps, rapid direction changes and repeated impacts, sudden ankle or foot pain does not always mean a “broken bone”. High-field Magnetic Resonance Imaging (MRI) makes it possible to determine whether the injury is a true non-displaced fracture or an impact-related microfracture, two conditions that may present with similar symptoms but have completely different recovery timelines.

Two different on-court injuries

Below we describe two injury mechanisms occurring during padel matches or training sessions.

The first case follows a sudden inversion rotation during a rapid change of direction, resulting in a non-displaced fracture of the posterior aspect of the tibia. The player appears to have sprinted forward to reach a short ball. While attempting to decelerate and change direction laterally, the foot remains fixed on the ground while the body continues rotating. This generates an inversion movement combined with internal tibial rotation, concentrating load on the posterior ankle compartment. This mechanism causes sudden stress on the posterior tibial margin, which is forced against the talar dome in torsion. The result is a clear fracture line of the posterior tibial aspect, associated with perifractural edema and extension toward the tibial plafond. This is a typical injury pattern in competitive padel, where rapid direction changes and decelerations produce significant torsional stress on the posterior tibia.

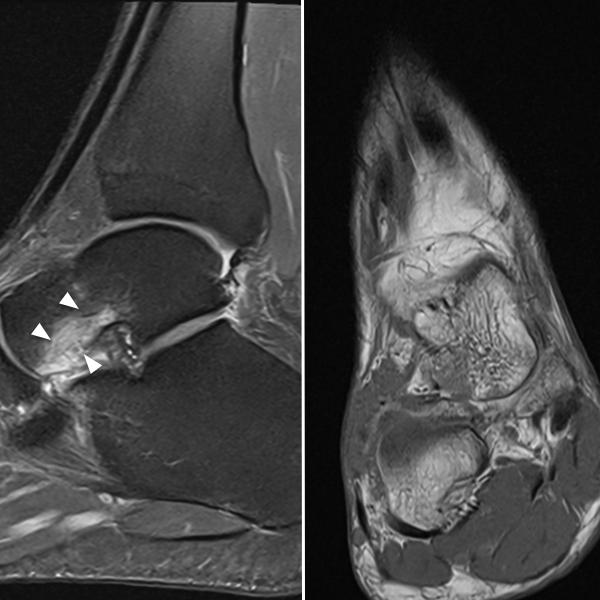

The second case is an impact injury after a jump, resulting in an impact-related microfracture of the talus (image 1: bone marrow edema, contused trabeculae, absence of a fracture line). The mechanism described by the player involves a jump for a bandeja shot, with landing occurring while the foot is slightly supinated and the heel not perfectly aligned. The landing load is transferred mainly to the posterolateral calcaneal compartment, while the inferior surface of the talus undergoes a sudden increase in pressure against the calcaneal surface. The result is a direct compressive impingement between the talus and calcaneus, producing trabecular microlesions of the talar articular surface, diffuse bone edema, but no true fracture line. This represents a classic imperfect axial loading injury, typical of rapid and unbalanced landings, very common in padel when playing overhead or during off-balance recovery movements.

Non-displaced fracture: what is it?

A non-displaced fracture is a true fracture line: the bone is interrupted along a precise line, even though it has not shifted. It is often not visible on plain radiographs, especially in the talus and tarsal bones, which are common sites of sports-related injuries. MRI identifies it with high accuracy thanks to the direct visualization of the fracture line and the surrounding bone marrow edema.

Impact-related microfracture: more common in athletes

An impact-related microfracture represents an internal bone contusion: there is no fracture line, but the trabecular structure is damaged, producing bone marrow edema. It commonly occurs after landings, torsional movements, sudden braking or repetitive impacts. MRI is the only imaging modality that clearly demonstrates this condition and allows it to be distinguished from a true fracture.

Why does MRI make the difference?

A correct diagnosis completely changes recovery timing and management:

• Non-displaced fracture: requires longer immobilization and carefully controlled progression.
• Microfracture: faster recovery, with focus on gradual loading and targeted physiotherapy.

With 3 Tesla systems, diagnostic accuracy increases further, allowing reliable evaluation even of very subtle bone injuries.

Conclusions

Distinguishing a fracture from a microfracture is essential to avoid unnecessary immobilization, shorten recovery time and prevent complications. MRI currently represents the most effective tool for athletes who aim to return safely to play in the shortest possible time.
